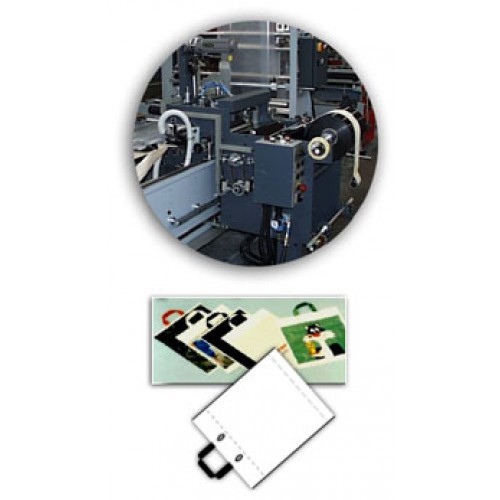

Electronic attachment for the automatic sealing of soft-loop handles to shopping bags.

Production of up to 150 shots/minute Equipped with a PLC to manage all functions related to the insertion and sealing of the soft handles and TWO brushless motors activated by digital electronic boards (one for the upper welding group and one for the soft-loop handle material feeding and folding. Pneumatic actuators with proximity switches, digital and independent thermoregulators and a display to diagnose the system's operative status.

Upper and lower welding group temperature control and adjustment including right/left side.

The SH9 (soft-loop handle attachment) has a very compact mono block structure, positioned on one side the machine's frame with the possibility of sliding on prismatic rails. The attachment also includes a double unwinder able to fit two soft-loop handles reels, max diameter 500 mm or 20 inches

The minimum width of the shopping bags is 300 mm or 12 inches.

Voltage: 230-400 Volt / 50 Hz (different Voltage upon request).

Delivery: Ex-Works Italy.

Time for Delivery: 8 - 10 Weeks.

Start-Up: Not included, but available upon request.
