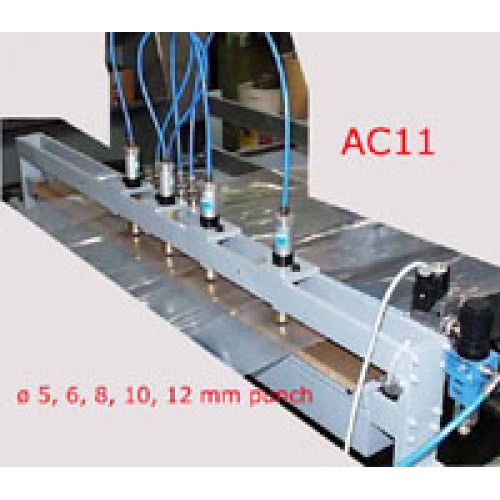

Electric-pneumatic Perforating Device complete with:

• Solenoid valve to control the pneumatic perforating units.
• Carrier frame to hold the pneumatic perforating units. The frame has a chip box . Upon request, the device can be pre-arranged to fix a chips aspirator.
• 6 Perforators made of a punch having a shape and a diameter as per specific request, and of a pneumatic cylinder. Minimum center distance of holes: 50 mm. Available punches: diameter 5, 6, 8, 10 and 12 mm.

Device complete with 6 perforators (upon request number of perforators and holes diametres can be changed).

Chip aspirator optional.

Delivery: Ex-Works Italy.

Time for Delivery: 6 -8 Weeks.

Start-Up: Not included, but available upon request.
