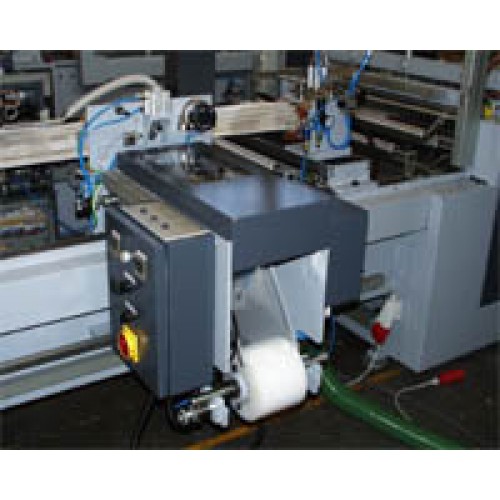

This electro-pneumatic device is designed to fit and weld a PE reinforcement on the film before producing the punched handle on the shopping bag (patch handle bag). The device is controlled by a Siemens PLC interfacing the main PLC for machine running. It consists of a reel unwinder for the reinforcement of film, draft rubber-coated calanders and pneumatic actuators for functions with proximity sensors. The upper and lower welders are complete with candle resistances and thermo-couples, with independent thermo-regulation systems.

The cutting blade made of high-speed steel is moved by a belt with a rotating pneumatic cylinder.

This device has a sturdy structure and it is installed on one side of the machine. It can be translated by means of steel prismatic guides for centering the reinforcement position with respect to the size of the bag to be produced.

The output granted by this device is of 120 strokes per minute thanks to a pneumatic and mechanical system of excellent quality.

Voltage: 230 Volt / 50 Hz (different Voltage upon request).

Delivery: Ex-Works Italy.

Time for Delivery: 8 Weeks.

Start-Up: Not included, but available upon request.
